Cree Lighting OSQ (C Series)
See every serve and volley clearer than ever with the new Cree Lighting OSQ C Series!
Building on the rich heritage of the Cree Lighting OSQ family, the C Series offers reduced glare and higher efficacy while weighing almost 40% less than its predecessor.
Cree Lighting’s NanoComfort® Technology ensures light is delivered precisely where it’s needed, with backlight shields available for even greater spill-light control (sold separately).
FEATURES
- Simple installation with near-zero maintenance
- NanoComfort® Technology
- Backlight shield available for even greater spill-light control
- 10-year limited warranty
Single Court
Typical Lighting Layouts for the Cree OSQ (C Series)
These diagrams show typical layouts that achieve the light levels recommended in the relevant Australian Standard (AS 2560.2.1-2021) for common levels of play. Please contact us if you have a different court configuration.

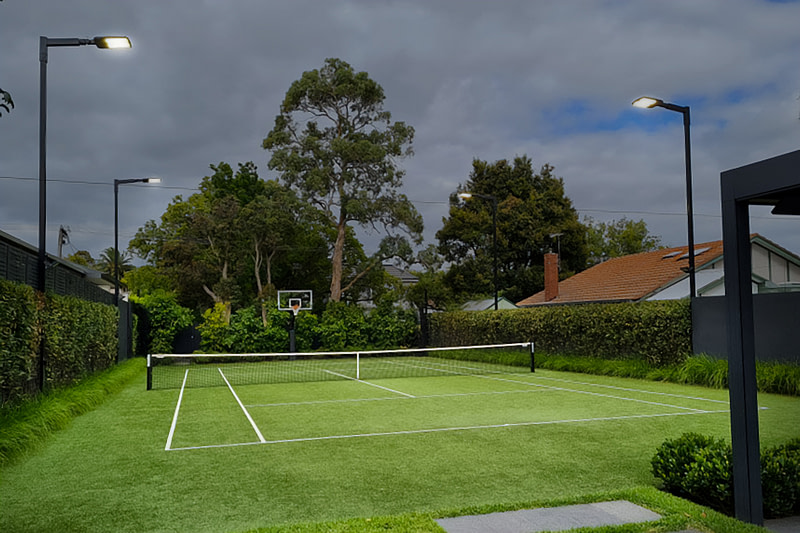

| Single (Residential) | Single (Club - Standard) | Single (Club - Premium) | |
|---|---|---|---|
| Level of Play | Recreation & Training (250 Lux) | Club Competition (350 Lux) | Club Competition (350 Lux) |
| No. of Poles | 4 | 4 | 6 |
| Pole Height | 6m | 6m | 6m |
| No. of Luminaires | 4 | 4 | 6 |
| Luminaire Type | Cree Lighting OSQ-C (447W) | Cree Lighting OSQ-C (520W) | Cree Lighting OSQ-C (447W) |
Double Court
Typical Lighting Layouts for the Cree OSQ (C Series)
These diagrams show typical layouts that achieve the light levels recommended in the relevant Australian Standard (AS 2560.2.1-2021) for common levels of play. Please contact us if you have a different court configuration.
| Double (Club - Hybrid Scheme) | |
|---|---|
| Level of Play | Club Competition (350 Lux) |
| No. of Poles | 7 |
| Pole Height | 8m |
| No. of Luminaires | 8 |
| Luminaire Type | Cree Lighting OSQ-C (520W) |
Triple Court
Typical Lighting Layouts for the Cree OSQ (C Series)
These diagrams show typical layouts that achieve the light levels recommended in the relevant Australian Standard (AS 2560.2.1-2021) for common levels of play. Please contact us if you have a different court configuration.
| Triple (Club - Hybrid Scheme) | |
|---|---|
| Level of Play | Club Competition (350 Lux) |
| No. of Poles | 10 |
| Pole Height | 8m |
| No. of Luminaires | 16 |
| Luminaire Type | Cree Lighting OSQ-C (447W) |
Quad Court
Typical Lighting Layouts for the Cree OSQ (C Series)
These diagrams show typical layouts that achieve the light levels recommended in the relevant Australian Standard (AS 2560.2.1-2021) for common levels of play. Please contact us if you have a different court configuration.
| Quad (Club - Hybrid Scheme) | |
|---|---|
| Level of Play | Club Competition (350 Lux) |
| No. of Poles | 13 |
| Pole Height | 8m |
| No. of Luminaires | 22 |
| Luminaire Type | Cree Lighting OSQ-C (447W) |
DIMENSIONS | OSQ-C XL DA
*OSQ C Series (XL) shown with Direct Mount (ordered separately)
