Arianna Petrarca 3.0
The ultimate modular floodlight solution combining advanced reflection optics with professional-grade illumination.
The Arianna Petrarca 3.0 LED Floodlight is a flexible and modular sports lighting solution capable of delivering up to 190,000 lumens through patented reflection optics that offer high efficiency, uniformity and visual comfort.
The Petrarca generates comfortable, even light distribution with minimal glare to provide an enjoyable experience for both participants and spectators. Whether it’s a tennis court or a larger sports field, the Arianna Petrarca 3.0 offers a cost-effective, energy-efficient modern LED sports lighting solution.
FEATURES
- Modular (one to four modules)
- Patented optics designed to maximise performance
- High visual comfort (low glare)
- 5-year limited warranty
Single Court
Typical Lighting Layouts for the Arianna Petrarca 3.0
These diagrams show typical layouts that achieve the light levels recommended in the relevant Australian Standard (AS 2560.2.1-2021) for common levels of play. Please contact us if you have a different court configuration.
| Single (Club - Standard) | Single (Club - Premium) | |
|---|---|---|
| Level of Play | Club Competition (350 Lux) | Club Competition (350 Lux) |
| No. of Poles | 4 | 6 |
| Pole Height | 6m | 6m |
| No. of Luminaires | 4 | 6 |
| Luminaire Type | Arianna Petrarca 3.0 (450W) | Arianna Petrarca 3.0 (339W) |
| Luminaire Modules | Two | One |
Double Court
Typical Lighting Layouts for the Arianna Petrarca 3.0
These diagrams show typical layouts that achieve the light levels recommended in the relevant Australian Standard (AS 2560.2.1-2021) for common levels of play. Please contact us if you have a different court configuration.
| Double (Club - Hybrid Scheme) | Double (Club - High Pole Scheme) | |
|---|---|---|
| Level of Play | Club Competition (350 Lux) | Club Competition (350 Lux) |
| No. of Poles | 7 | 4 |
| Pole Height | 8m | 10m |
| No. of Luminaires | 8 | 4 |
| Luminaire Type | Arianna Petrarca 3.0 (450W) | Arianna Petrarca 3.0 (1276W) |
| Luminaire Modules | Two | Four |
Triple Court

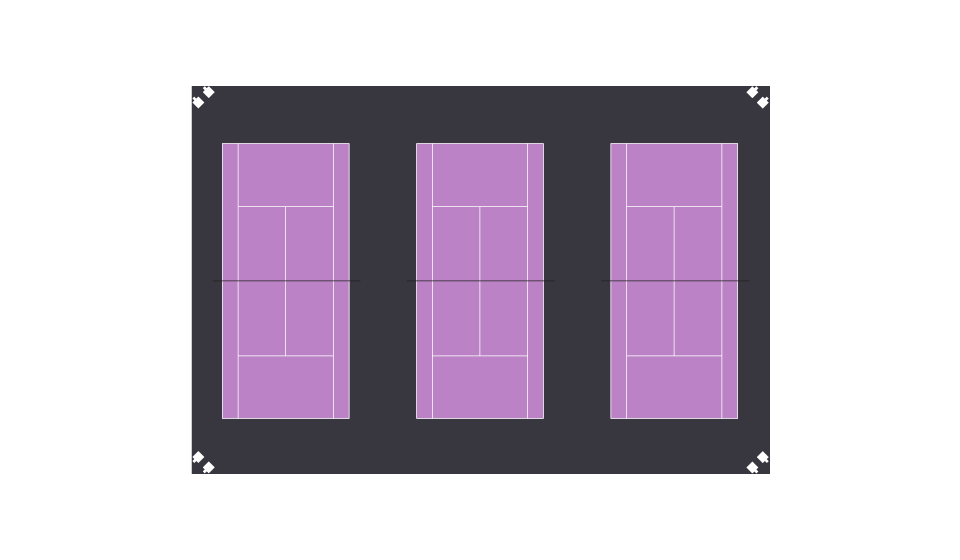

Typical Lighting Layouts for the Arianna Petrarca 3.0
These diagrams show typical layouts that achieve the light levels recommended in the relevant Australian Standard (AS 2560.2.1-2021) for common levels of play. Please contact us if you have a different court configuration.
| Triple (Club - Hybrid Scheme) | Triple (Club - High Pole Scheme) | |
|---|---|---|
| Level of Play | Club Competition (350 Lux) | Club Competition (350 Lux) |
| No. of Poles | 10 | 4 |
| Pole Height | 8m | 12m |
| No. of Luminaires | 16 | 8 |
| Luminaire Type | Arianna Petrarca 3.0 (450W) | Arianna Petrarca 3.0 (1007W) |
| Luminaire Modules | Two | Four |
Quad Court

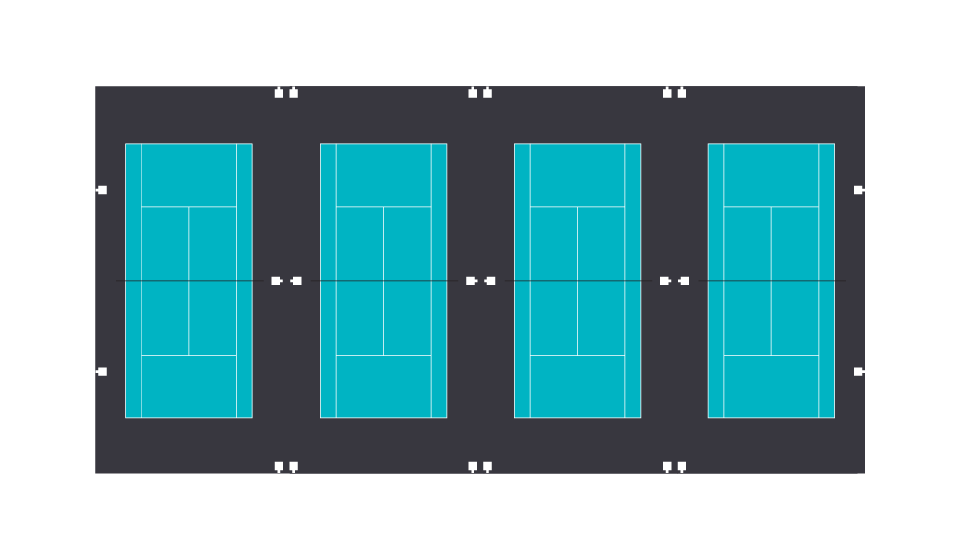

Typical Lighting Layouts for the Arianna Petrarca 3.0
These diagrams show typical layouts that achieve the light levels recommended in the relevant Australian Standard (AS 2560.2.1-2021) for common levels of play. Please contact us if you have a different court configuration.
| Quad (Club - Hybrid Scheme) | Quad (Club - High Pole) | |
|---|---|---|
| Level of Play | Club Competition (350 Lux) | Club Competition (350 Lux) |
| No. of Poles | 13 | 4 |
| Pole Height | 8m | 12m |
| No. of Luminaires | 22 | 8 |
| Luminaire Type | Arianna Petrarca 3.0 (450W) | Arianna Petrarca 3.0 (1467W) |
| Luminaire Modules | Two | Four |

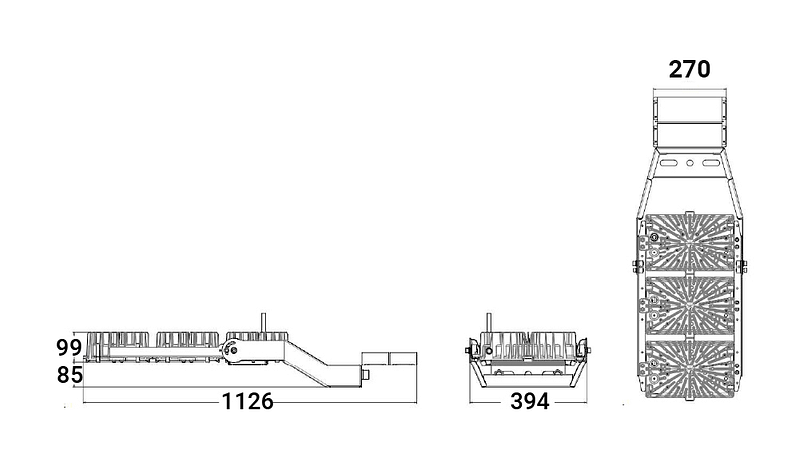

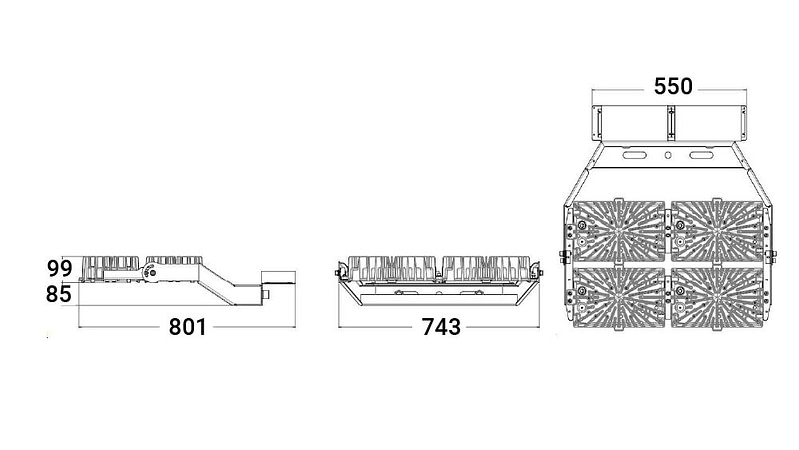

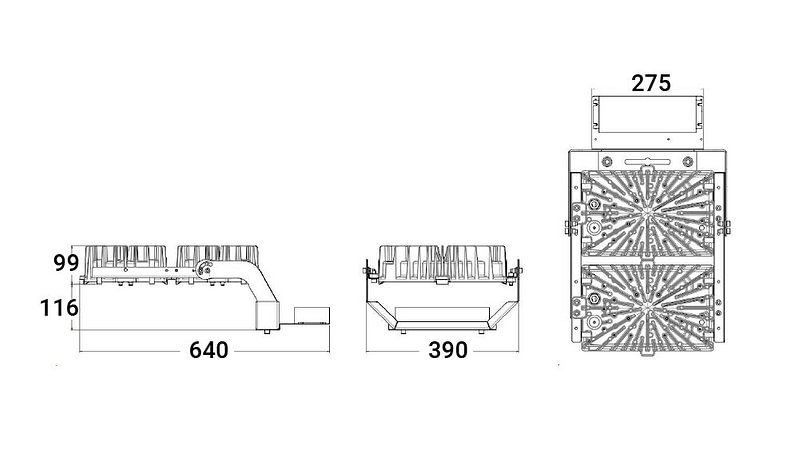

DIMENSIONS
